Product Details
Place of Origin: China
Brand Name: JC
Certification: CE FCC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case，flight case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sqm month
Waterproof: |
Back IP67 Front IP67 |
Pwoer Brand: |
JuNeng Shenzhen |
Installation: |
Hangling Or Staching |
Colors: |
Full Color |
Led Light: |
REE1515 |
Brighness: |
>5000cd/m2 |
Power Supply: |
Meanwell |
Tube Chip Color: |
Full Color |
Osd Language: |
Multi-language Support |
Panel Size: |
1000*500mm |
Operating Temperature: |
-20°C~60°C |
Cabinet Size: |
1000x1000mm |
Appliation: |
Indoor |
Leds: |
SMD2121/1921/4321 |
Gray Level: |
14bit |
Waterproof: |
Back IP67 Front IP67 |
Pwoer Brand: |
JuNeng Shenzhen |
Installation: |
Hangling Or Staching |
Colors: |
Full Color |
Led Light: |
REE1515 |
Brighness: |
>5000cd/m2 |
Power Supply: |
Meanwell |
Tube Chip Color: |
Full Color |
Osd Language: |
Multi-language Support |
Panel Size: |
1000*500mm |
Operating Temperature: |
-20°C~60°C |
Cabinet Size: |
1000x1000mm |
Appliation: |
Indoor |
Leds: |
SMD2121/1921/4321 |
Gray Level: |
14bit |

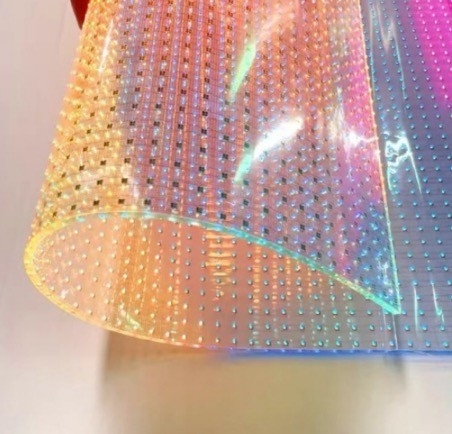

Flexible Transparent LED Flim Display
Flexible Transparent LED Flim Display perfectly retain the transparent effect of the glass curtain wall.
Without affecting indoor and outdoor lighting.
It will not affect the original design when the screen body stops working.
It is basically integrated with the building from a distance.
Feature:
1. High transparency rate, even up to 90%.
| Product Model | JC-CFT-P6.25 | JC-CFT-P8 | JC-CFT-P10 | JC-CFT-P15 | JC-CFT-P20 |
| Module Size(mm) | 1000 x 400 | 1000 x 400 | 1000 x 400 | 990 x 390 | 1000 x 400 |
| LED chip | REE1515 | REE1515 | REE1515 | REE2121 | REE2121 |
| Pixel Composition | R1B1G1 | R1B1G1 | R1B1G1 | R1B1G1 | R1B1G1 |
| LED Pitch | 6.25 x 6.25 | 8 x 8 | 10 x 10 | 15 x 15 | 20 x 20 |
| Module Resolution | 160 x 64 = 10240 | 125 x 50 = 6250 | 100 x 40 = 4000 | 66 x 26 = 1716 | 50 x 20 =1000 |
| Pixel Density | 25600 | 15625 | 10000 | 4356 | 2500 |
| Brightness | 2000 / 4000 | 2000 / 4000 | 2000 / 4000 | 2000 / 4000 | 2000 / 4000 |
| Transparent Rate | 90% | 92% | 94% | 94% | 95% |
| Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Weight / Thickness | 1.3kg / 2.5mm | ||||
| Driving Method | Static | Static | Static | Static | Static |
| Gray Level | 16bit | 16bit | 16bit | 16bit | 16bit |
| Lifespan | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Application | Office, 4S Store, Tea and cold drink shop, shopping mall, restaurant, commercial lift | ||||
Transparent LED display is a new type of display technology, with high transparency, bright color, high brightness and so on.
In stores, transparent LED displays can be applied to store glass to attract customers' attention and improve the store's brand image.
We provide an application scheme of transparent LED display in shop window.
The solution uses transparent LED display screens mounted on store glass to allow stores to display advertising messages and attract customers' attention without taking up large areas of space.
Application scenarios of the scheme includes the following several aspects:
Store product display:
The transparent LED display can be used to display the store's product information and promotional information to attract customers' attention.
Brand promotion:
Stores can use transparent LED displays to promote brand image and culture and enhance brand influence.
Activity publicity:
Stores can use transparent LED displays to promote various activities, such as new product launches, discount promotions, etc. In addition, this scheme can realize the real-time updating of information, improve the shop the timeliness of information, but also can greatly improve the store's visual aesthetic feeling and the brand image, let shop more attractive and modern.
