Product Details
Place of Origin: China
Brand Name: JC
Certification: CE FCC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case，flight case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sqm month
Mtbf: |
≥9000hours |
Grey Scale: |
≥14bit |
Warranty: |
2 Years |
Pixel Diameter: |
2.5mm,3.91mm,5.2mm,6.25mm,7.81mm |
Pixels: |
10mm |
Module Resolution: |
32pixel(W) * 16 Pixel Mm(H) |
Pixel Density: |
160000 Pixels/m² |
Cabinet Resolution: |
Dots*dots |
Pixel Pitch: |
2.5mm |
Average Power Consumption: |
300W/sqm |
Content: |
Video,text, Picture Etc. |
Appllication Place: |
Indoor & Outdoor |
Front Type: |
Magnetic |
Show Room: |
YES IN FLORIDA |
Usage Environment: |
Outdoor Usage |
Mtbf: |
≥9000hours |
Grey Scale: |
≥14bit |
Warranty: |
2 Years |
Pixel Diameter: |
2.5mm,3.91mm,5.2mm,6.25mm,7.81mm |
Pixels: |
10mm |
Module Resolution: |
32pixel(W) * 16 Pixel Mm(H) |
Pixel Density: |
160000 Pixels/m² |
Cabinet Resolution: |
Dots*dots |
Pixel Pitch: |
2.5mm |
Average Power Consumption: |
300W/sqm |
Content: |
Video,text, Picture Etc. |
Appllication Place: |
Indoor & Outdoor |
Front Type: |
Magnetic |
Show Room: |
YES IN FLORIDA |
Usage Environment: |
Outdoor Usage |
Offline Message
| Optical characteristic | Type | PH4 | PH5.33 | PH6.67 | PH8 | PH10 |
| Pixel pitch(mm) | 4 | 5.33 | 6.67 | 8 | 10 | |
| Pixel density (Dots/㎡) | 62,500 | 35,156 | 22,500 | 15,625 | 10,000 | |
| Pixel congriration | 1R1G1B | |||||
| Module dots (W*H) | 80*80dots | 60*60dots | 48*48dots | 40*40dots | 32*32dots | |
| Driving mode | 1/10 Scan | 1/7 & 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan | |
| Brightness(cd/㎡) | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥5800 | |
| Gray level (bit) | 16 bit | |||||
| Visual refresh (Hz) | ≥3840 | |||||
| Horizontal visual Angle(Deg) | 140(±10) | |||||
| Vertical viewing Angle(Deg) | 120(±10) | |||||
| Physical characteristic | Module size (L*W) | 320*320mm | ||||
| Module weight (g) | 1250g | 1200g | 1220g | 1200g | 1195g | |
| Module mask flatness | ≤0.2mm | |||||
| Input voltage (DC) | 5V | |||||
| Module maximum current (amperes) | ≤16A | ≤15A | 14.3A | |||
| Module Maximum power consumption (w) | ≤80 | ≤75 | ≤60 | |||
| Maximum power consumption (w/㎡) | ≤800 | ≤750 | ≤600 | |||
| Module installation structure | Buckle type front mounting | |||||
| Mean time to failure | ≥10,000 hours | |||||
| Service life | ≥100,000 hours | |||||
| Working enviroment | Use environment | Outdoor | ||||
| Operating temperature range (℃) | -10℃-60℃ | |||||
| Operating humidity range (RH) | 30%-85% | |||||
| Storage temperature range (℃) | 0℃-40℃ | |||||
| Storage humidity range (RH) | 35%-60% | |||||
| Protection class | Front IP65 | |||||
Feature

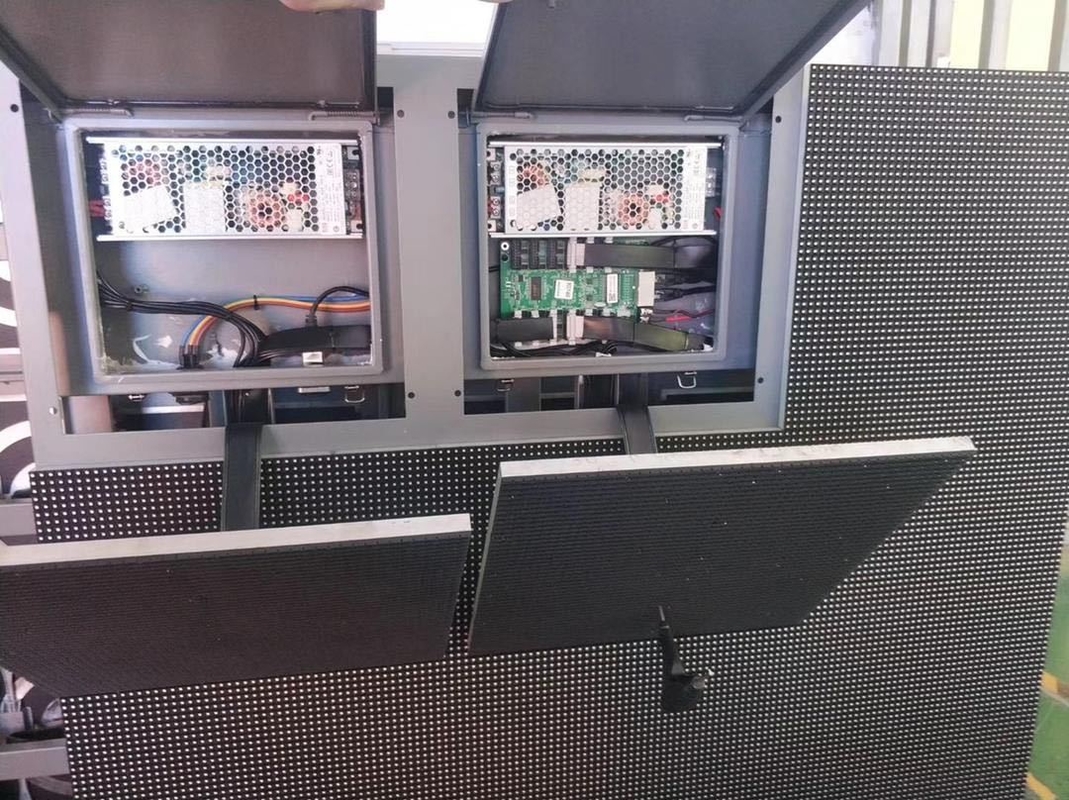

1)Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2)Adopt top high brightness with low power consumption LED lamp, energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection. Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3)Free back service path for all kinds of installation surroundings. Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
4)It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can be shaped into column to wrap pillars for animation decoration.
FAQ
1sqm.
2.How about payment?
T/T , L/C, Western union,Paypal,Cash can optional.
3.How about the lead time?
LED Module:1-7working days
LED Display: 3-20working days
4. How about the warranty time?
Our standard is 2years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5years warranty.
5. Which shipping port you use?
Our standard is Shenzhen, but Guangzhou or Hongkong.
We also can accept your appoint port.
6. How to do the shipping?
You can use our shipping agent who we have cooperate more than 4years
Or you can use your shipping agent.
