Anti UV Fixed Outdoor Led Display Board Advertising Screen 48x24

Product Details

Place of Origin: China

Brand Name: JC

Certification: CE FCC

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: wooden case，flight case

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 4300 sqm month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Anti UV outdoor led display board, 48x24 outdoor led display board, 48x24 led advertising screen


Refresh Frequency:	> 3840Hz	Module Size:	160mm160mm/192mm192mm/256mm128mm/320mm160mm
Protection Level:	IP65	Display Color:	RGB Full Color
Power Consumption:	Max: 750W/m²/Average: 300W/m²	Resolution:	48*24
Led Cabinet Material:	Aluminum	Frame Frequency:	65Hz
Cabinet Resolution:	96×96	Brightness:	≥6000cd/m²
Size:	320*160mm	Cabinet Size:	960mm960mm/960mm960mm/960mm960mm/960mm960mm
Maintenance:	Front&Rear Service	Module Resolution:	16×16
Driving Method:	Static

Refresh Frequency:	> 3840Hz
Module Size:	160mm160mm/192mm192mm/256mm128mm/320mm160mm
Protection Level:	IP65
Display Color:	RGB Full Color
Power Consumption:	Max: 750W/m²/Average: 300W/m²
Resolution:	48*24
Led Cabinet Material:	Aluminum
Frame Frequency:	65Hz
Cabinet Resolution:	96×96
Brightness:	≥6000cd/m²
Size:	320*160mm
Cabinet Size:	960mm960mm/960mm960mm/960mm960mm/960mm960mm
Maintenance:	Front&Rear Service
Module Resolution:	16×16
Driving Method:	Static

Product Description

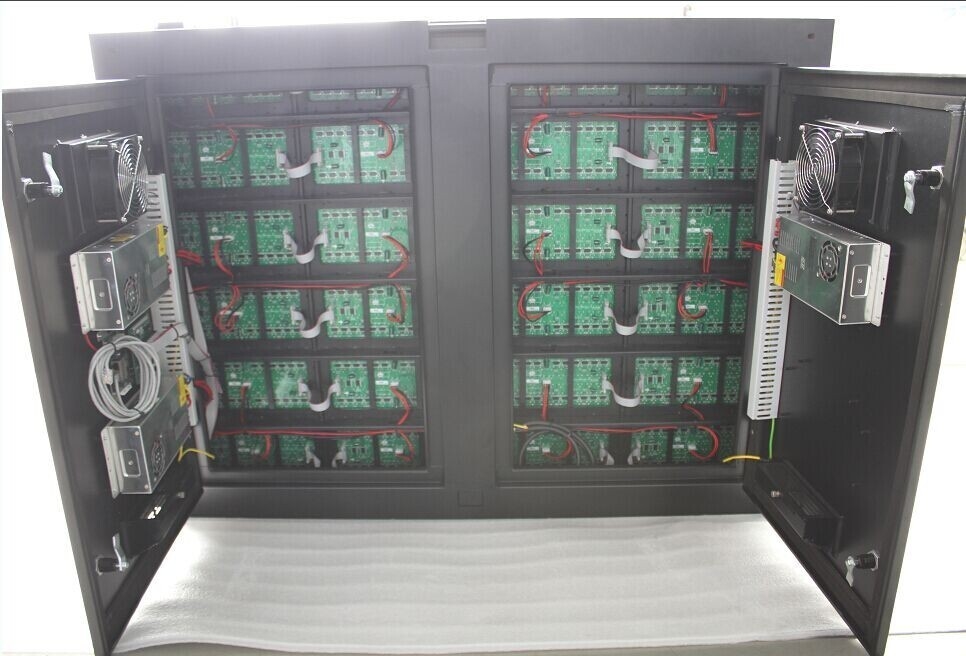

Outdoor fixed installation

JCfixed-outdoor Advantages:

Reliable quality assurance.

High brightness but with low consumption.

Anti-UV module mask to protect high temperature and salty area Sturdy cabinet ensures its super protection performance.

Offline Message

Specifications

JC-Outdoor	JCFix-O4	JCFix-O5	JCFix-O6	JCFix-O8	JCFix-O10	JCFix-O16
Pixel pitch(mm)	4	5	6	8	10	16
Pixel Density(dot/m2)	62500	40000	27777	15625	10000	3906
LED Type	SMD 1921	SMD 2727	SMD 2727	SMD 3535	SMD 3535	SMD 3535
Module Size(W x H x D)mm	256 x 128	320 x 160	192 x 192	256 x 128	320 x 160	256 x 256
Module resolution(W x H)	64 x 32	64 x 32	32 x 32	32 x 16	32 x 16	16 x16
Module Weight(Kg)	0.26	0.5	0.32	0.25	0.52	0.48
Power Consumption per Module(w)	25	39	28	25	38	48
Diver Mode(Scan)	1/8	1/8	1/8	1/4	1/2	Static
Brightness(cd/m2)	≥5000	≥5000	≥5500	≥5500	≥7000	≥7000
Grey Scale(bits)	16	16	16	16	16	16
Refresh Rate(Hz)	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920	≥1,920
Cabinet Size(W x H x D)mm	768 x 768 x 170	960 x 960 x170	960 x 960 x170	1024 x 768 x170	960 x 960 x170	1024 x 768 x170
Cabinet Weight(Kg/Cabinet)	30	46	46	39	46	39
Max Power Consumption(W/m2)	900	900	900	900	900	900
Average Power Consumption(W/m2)	300	300	300	300	300	300
View Angle(H°/V°)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Mini View Distance(m)	4	5	6	8	10	16
Operating Use Temperature(℃)	-10℃~40℃
Storage Use Temperature(℃)	-20℃~50℃
Input Voltage(V)	100~240V
Input Power Frequency(Hz)	50Hz~60Hz
Failure Rate	＜1/100,1000
Signal Input Format	SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc.
Life Time(hrs)	100000
IP Level(front/rear)	IP65/IP56
