Product Details
Place of Origin: China
Brand Name: JC
Certification: CE FCC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case，flight case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sqm month

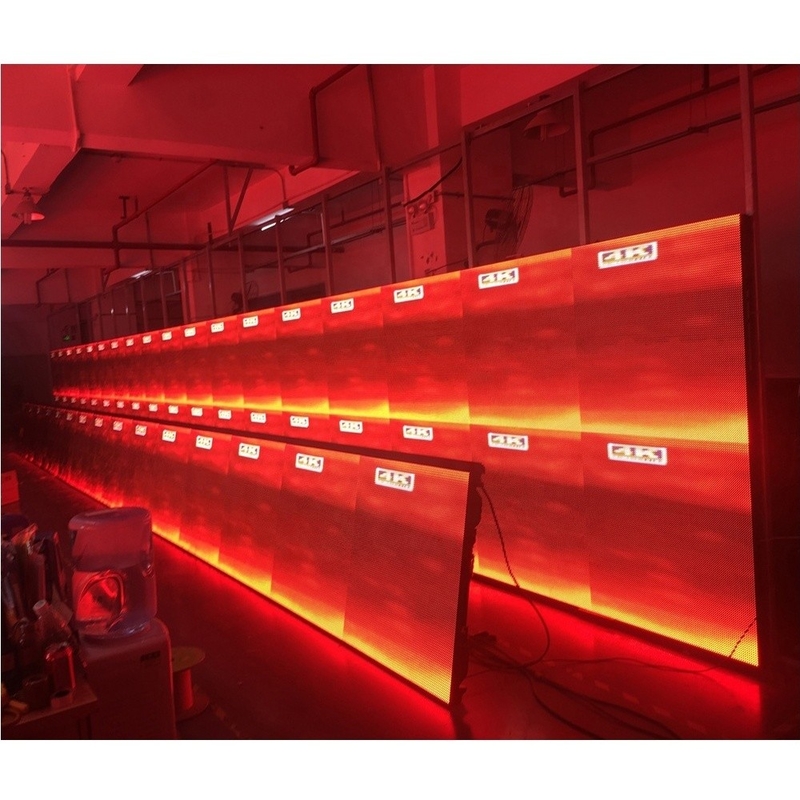

JC Sports advantages
Wide viewing angel with 140/140 degree
Tilfing mechanism with different angles improves the view from broadcasting camera;
Signal and power backup avoid any image loss during living playing;
Top rubber pillow to protect players and audiences be hurt .
Emergency gate design for any unexpect case happen.
| JC Sports-Out | JC-O10 | JC-O12.5 | JC-O16 | JC-O12.5N |
|---|---|---|---|---|
| Pixel pitch(mm) | 10 | 12.5 | 16 | 12.5 |
| Pixel Density(dot/m2) | 10000 | 6400 | 3906 | 6400 |
| LED Type | SMD 3535 | SMD 3535 | SMD 3535 | SMD2727 |
| Module Size(W x H x D)mm | 300 x 300 | 300x300 | 256 x128 | 400x 300 |
| Module resolution(W x H) | 30 x 30 | 24x 24 | 16 x 8 | 32 x 24 |
| Module Weight(Kg) | 1.25 | 1.25 | 0.5 | 2.5 |
| Power Consumption per Module(w) | 60 | 60 | 23 | 84 |
| Diver Mode(Scan) | 1/2 | 1/2 | static | 1/2 |
| Brightness(cd/m2) | ≥5000 | ≥4500 | ≥5000 | ≥4500 |
| Grey Scale(bits) | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 |
| Cabinet Size(W x H x D)mm | 900 x 900 x 104 | 1024x 768 x104 | 960 x 800 x150 | 1000x 750 x100 |
| Cabinet Weight(Kg/Cabinet) | 48 | 48 | 48 | 75 |
| Max Power Consumption(W/m2) | 700 | 700 | 700 | 700 |
| Average Power Consumption(W/m2) | 210 | 210 | 210 | 210 |
| View Angle(H°/V°) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Mini View Distance(m) | 10 | 12 | 16 | 12 |
| Operating Use Temperature(℃) | -20℃~60℃ | |||
| Storage Use Temperature(℃) | -20℃~60℃ | |||
| Input Voltage(V) | 100~240V | |||
| Input Power Frequency(Hz) | 50Hz~60Hz | |||
| Failure Rate | ＜1/100,1000 | |||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||
| Life Time(hrs) | 100000 | |||
| IP Level(front/rear) | IP65/IP54 | |||
