JCR
Light weight and ultrathin body.
Tool-free assembly and disassembly.
Seamless installation, error<0.1mm.
Good heat dissipation, without flat cable design.
Curve or round shape it’s a option
Offline Message
Specifications
| JC-Rental |
R-2.6in |
R-2.84in |
R-2.97in |
R-3.91in |
R-3.47 |
R-3.91 |
R-4.81 |
| Pixel pitch(mm) |
2.6 |
2.84 |
2.97 |
3.91 |
3.47 |
3.91 |
4.81 |
| Pixel density(dot/m2) |
1474561 |
123904 |
112896 |
65536 |
82944 |
65536 |
43264 |
| LED configuration |
SMD 1515 |
SMD 1515 |
SMD 2121 |
SMD 2121 |
SMD 1921 |
SMD 1921 |
SMD 1921 |
| Module dimension(W x H)mm |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
| Module resolution(W x H) |
96 x 96 |
88 x 88 |
84 x 84 |
64 x 64 |
72 x 72 |
64 x 64 |
52 x 52 |
| Scanning mode |
1/24 |
1/24 |
1/21 |
1/16 |
1/18 |
1/16 |
1/16 |
| Brightness(dot/m2) |
≥800 |
≥800 |
≥800 |
≥800 |
≥5000 |
≥4500 |
≥4500 |
| Gray scale(bit) |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
| Refresh rate(Hz) |
≥1,920 |
≥1,920 |
≥1,920 |
≥1,920 |
≥1,920 |
≥1,920 |
≥1,920 |
| Cabinet dimension(W x H x D)mm |
500 x 500 x 88 |
500 x 500 x 88 |
500 x 500 x 88 |
500 x 500 x 88 |
500 x 500 x 88 |
500 x 500 x 88 |
500 x 500 x 88 |
| Weight(Kg/cabinet) |
7.2 |
7.2 |
7.2 |
7.2 |
7.5 |
7.5 |
7.5 |
| Max.consumption(W/m2) |
550 |
460 |
480 |
400 |
600 |
600 |
580 |
| Avg.consumption(W/m2) |
200 |
160 |
170 |
150 |
200 |
200 |
180 |
| Viewing angle |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
| Viewing distance(m) |
2m |
2m |
2m |
3m |
3m |
3m |
4m |
| Environment |
Indoor |
Indoor |
Indoor |
Indoor |
Outdoor |
Outdoor |
Outdoor |
| Operating use temperature(℃) |
-10℃~40℃ |
| Storage use temperature(℃) |
-20℃~50℃ |
| Input voltage(V) |
100~240V |
| Input power frequency(Hz) |
50Hz~60Hz |
| Blind spot rate |
＜1/10000 |
| Input signal |
SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. |
| Life time(hrs) |
100000 |
| IP level |
IP45
|
1. Product introduction
Normally when we talk about rental LED display, it means the LED display is for rental purpose. It is used for different kinds of events. The panel of the rental LED display is light weight, quick installation design, available for both hanging installation and stacking installation, etc.
This type outdoor led rental display is the best option for outdoor advertising, this rental LED display has some features and advantages that make it highly suitable for outdoor areas.
2. Product feature and application
Led rental display is with light weight,slim structure.It can be fast installed and dismantled with different types of shape and styles installations according to the site environment to meet your requirements.
★Light weight,supper slim,fast installation design,you can finish installations and dismantles within a short time;
★Support LAN cables layout randomly,meet different cabinets’ order in vertical and horizontal direction to create various image effects;
★Equipment with professional processor,support AV,DP, DVI,HDMI,SDI etc signal input interfaces
★Support 256 level brightness and white balance custom-made adjusted to support the different batches display used at the same time;
It supports all kinds of format of videos and images.It can work in different brightness level and outdoor circumstances. Rental led display can also be used at stage, bank, promotion, exhibition, station, KTV, stadium, airport and other outdoor places.
3. Production details

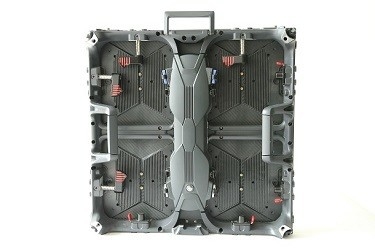

1,Ultra Light: Weight7kg,one man’s work for the installations.
2,Ultra Slim:Die casting aluminum cabinet,high-impact,durable,and high accuracy,flexible for cost effective transportation.
3,Compatible: unique structure design,waterproof to meet the outdoor used.
4,Fast:With up and down fast locking design on cabinet,finished installations in 10 seconds.
5,Flexible installation ways:hanging or stacking on floor.
