Product Details
Place of Origin: China
Brand Name: JC
Certification: CE FCC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case，flight case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sqm month
Maximum Power: |
300W |
Module Resolution: |
128*64/64*32/64*32 |
Pixel Density: |
640000 |
Led Type: |
Flip Chip COB |
Package: |
Flight Case Or Wooden Case |
Life Span: |
100,000 Hours |
Refresh Rate: |
≥1920Hz |
Ip Rating: |
IP65/IP54 |
Scan Mode: |
1/60 |
Cabinet Resolution: |
480*270 Pixels |
Hs Code: |
8528591090 |
Display Type: |
Chip-on-board (COB) |
Maintenance: |
Front Service Service |
Control System: |
Novastar/Linsn/Colorlight |
Brightness: |
≥1000cd/㎡ |
Maximum Power: |
300W |
Module Resolution: |
128*64/64*32/64*32 |
Pixel Density: |
640000 |
Led Type: |
Flip Chip COB |
Package: |
Flight Case Or Wooden Case |
Life Span: |
100,000 Hours |
Refresh Rate: |
≥1920Hz |
Ip Rating: |
IP65/IP54 |
Scan Mode: |
1/60 |
Cabinet Resolution: |
480*270 Pixels |
Hs Code: |
8528591090 |
Display Type: |
Chip-on-board (COB) |
Maintenance: |
Front Service Service |
Control System: |
Novastar/Linsn/Colorlight |
Brightness: |
≥1000cd/㎡ |
JC TTS advantages
Super slim & less weight design
Wireless module board connection
Easy maintenance
Low power consumption
Multi control and installation ways
Offline Message
| JC TTS | JC TTS-2.5 | JC TTS-3.33 | JC TTS-5 |
|---|---|---|---|
| Pixel pitch(mm) | 2.5 | 3.33 | 5 |
| Pixel Density(dot/m2) | 160000 | 90180 | 40000 |
| LED Type | SMD2121(1921) | SMD1921 | SMD1921 |
| Cabinet Size(W x H x D)mm | 1102 x 405 x 135 | ||
| Cabinet resolution(W x H) | 2sides ,each side:384x128 | 2sides ,each side:288x96 | 2sides ,each side:192x64 |
| Cabinet Weight(Kg) | 17 | 16 | 16 |
| Diver Mode(Scan) | 1/16 | 1/12 | 1/8 |
| Brightness(cd/m2) | 1500(4500) | 4500 | 4500 |
| Grey Scale(bits) | 16 | 16 | 16 |
| Refresh Rate(Hz) | ≥960 | ≥960 | ≥960 |
| Max Power Consumption(W/set) | 380 | 380 | 380 |
| Average Power Consumption(W/set) | 110 | 110 | 110 |
| View Angle(H°/V°) | 160/160 | 160/160 | 160/160 |
| Mini View Distance(m) | 2 | 3 | 5 |
| Operating Use Temperature(℃) | -10℃~40℃ | ||
| Storage Use Temperature(℃) | -20℃~50℃ | ||
| Input Voltage(V) | 100~240V | ||
| Input Power Frequency(Hz) | 50Hz~60Hz | ||
| Failure Rate | ＜1/100,1000 | ||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | ||
| Life Time(hrs) | 100,000 | ||
| IP Level(front/rear) | IP65 /IP65 | ||
Notice for user

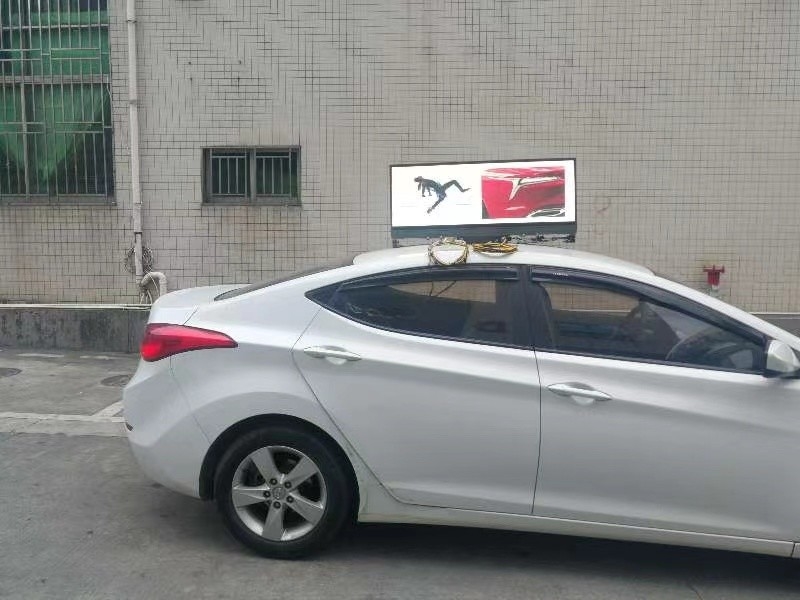

1,Confirm the top part of the car could support the weight of the sign.
2,Confirm the car battery is enough for the led sign,if not than add extra .
3,LED sign power is with DC12V±15% and should check the positive and negative electrode.Yellow or red wire is positive and black is negative.
4,On and off
Turn on the swift, the power supply runs after 6 seconds and the controller works after 1 minute then the sign lights on(protect other equipment and assure the sign and car power system in safe condition) .Turn off the sign,the power will be cut after 2 minutes(protect the sign if the car flame out too often).
5,Cover with PC material should not use sharp solid tool to scratch, could use soft cloth to clean with detergent.
6,if need to change the control wire like backlight or switch way,should ask professional person to do it.
Advantages
1,Low power consumption with high brightness.
2,Patent structure design,aluminum case with oxidation treatment,coating film for unti-ultraviolet, outdoor painting for anti-rusting and anti-aging.
3,High transparent PC cover that not turning yellow color or old in 10 years
4,Patent design with high level power supply,beyond voltage,current load,short circuit will be protected. Also with delay switch function.Work in -40°C~+70°C environment.
5,Web control and could manage in anytime and any location through web browser. No need for download software.
6,With easy installation bracket.
7,Fast maintenance structure.
8,Customize with different.
