SMD Outdoor Front Service Led Display Module 250x250mm

Product Details

Place of Origin: China

Brand Name: JC

Certification: CE FCC

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: wooden case，flight case

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, L/C

Supply Ability: 4300 sqm month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMD outdoor front service led display, 250x250 outdoor front service led display, 250x250 front access led display


Configuration:	SMD3535	Protection Grade:	IP65
View Distance:	5-80m	Local Service:	YES
Led Type:	3 In 1, SMD3528	Pixel Composition:	1R1G1B
Working Vlotage:	AC 100V - 240V	Power Supply:	G-energy
Standard:	CE/ROHS/FCC/SGS	Pixel Structure:	1R1G1B
Module Resolution:	96 X 96 Pixels	Colours:	281 Trillion
Cabinet Resolution:	320x320dots,384X384	Module Size:	250mm X 250mm
Led Brand:	NationStar

Configuration:	SMD3535
Protection Grade:	IP65
View Distance:	5-80m
Local Service:	YES
Led Type:	3 In 1, SMD3528
Pixel Composition:	1R1G1B
Working Vlotage:	AC 100V - 240V
Power Supply:	G-energy
Standard:	CE/ROHS/FCC/SGS
Pixel Structure:	1R1G1B
Module Resolution:	96 X 96 Pixels
Colours:	281 Trillion
Cabinet Resolution:	320x320dots,384X384
Module Size:	250mm X 250mm
Led Brand:	NationStar

Product Description

Front & Rear Service Display

Outdoor 250x250mm Front and Rear Service Display

250x250mm outdoor full-color SMD front service module is our companynew professional product.

The PCB and Housing are independently researched and developed by us.

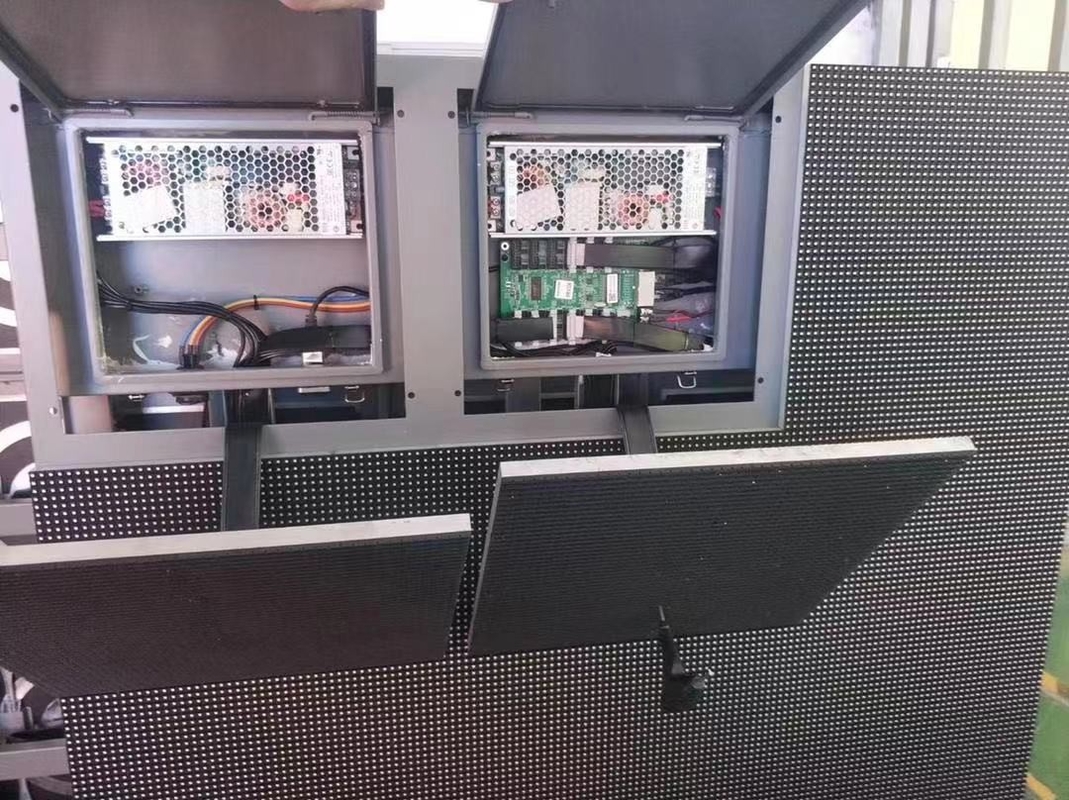

Module size 250*250mm, buckle type used for front installation , and maintenance more convenient.

PCB two-layer circuit design, TG150KB board thickness 1.6MM, board and copper thickness meet industry standards, IC adopts JICchuong North ICND2038S high-sweep dual cache chip and RUC5958DSP line decoding chip, which effectively inhibits the phenomenon of internal short circuit and open series lighting of LED light chip, up ghost and down ghost.

Offline Message

Specifications

Optical characteristic	Type	PH3.91	PH4.81	PH5.95
	Pixel pitch(mm)	3.91	4.81	5.95
	Pixel density (Dots/㎡)	65,536	43,264	28,224
	Pixel congriration	1R1G1B
	Module dots (WH)*	6464dots*	5252dots*	4242dots*
	Driving mode	1/8 Scan	1/6 & 1/7 Scan	1/7 Scan
	Brightness(cd/㎡)	≥5500	≥5500	≥5500
	Gray level (bit)	16 bit
	Visual refresh (Hz)	≥3840
	Horizontal visual Angle(Deg)	140(±10)
	Vertical viewing Angle(Deg)	120(±10)
Physical characteristic	Module size (LW)*	250250mm*
	Module weight (g)	880g	880g	880g
	Module mask flatness	≤0.2mm
	Input voltage (DC)	5V
	Module maximum current (amperes)	≤12.5A	≤10.5A	≤8A
	Module Maximum power consumption (w)	≤62.5	≤55	≤40
	Maximum power consumption (w/㎡)	≤1000	≤880	≤650
	Module installation structure	Buckle type front mounting
	Mean time to failure	≥10,000 hours
	Service life	≥100,000 hours
Working enviroment	Use environment	Outdoor
	Operating temperature range (℃)	-10℃-60℃
	Operating humidity range (RH)	30%-85%
	Storage temperature range (℃)	0℃-40℃
	Storage humidity range (RH)	35%-60%
	Protection class	Front IP65
