Product Details
Place of Origin: China
Brand Name: JC
Certification: CE FCC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case，flight case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 4300 sqm month
Screen Dimension: |
Customized |
Drive Mode: |
1/20scan,constant Current |
Color Depth: |
RGB |
Specification: |
Video Wall |
Operating Temperature: |
-20℃~+60℃ |
Scan: |
1/16 |
Input Voltage: |
AC110-220V |
Pixel Config: |
1R1G1B 3-in-1 |
Control System: |
Nova/Linsn/Colorlight |
Business: |
Sales Or Rental |
Protection Level: |
IP65 |
Pitch: |
7.62 |
Maintenance: |
Front/rear |
Touch Screen Type: |
Infrared |
Horizontal Viewing Angle: |
140º |
Screen Dimension: |
Customized |
Drive Mode: |
1/20scan,constant Current |
Color Depth: |
RGB |
Specification: |
Video Wall |
Operating Temperature: |
-20℃~+60℃ |
Scan: |
1/16 |
Input Voltage: |
AC110-220V |
Pixel Config: |
1R1G1B 3-in-1 |
Control System: |
Nova/Linsn/Colorlight |
Business: |
Sales Or Rental |
Protection Level: |
IP65 |
Pitch: |
7.62 |
Maintenance: |
Front/rear |
Touch Screen Type: |
Infrared |
Horizontal Viewing Angle: |
140º |

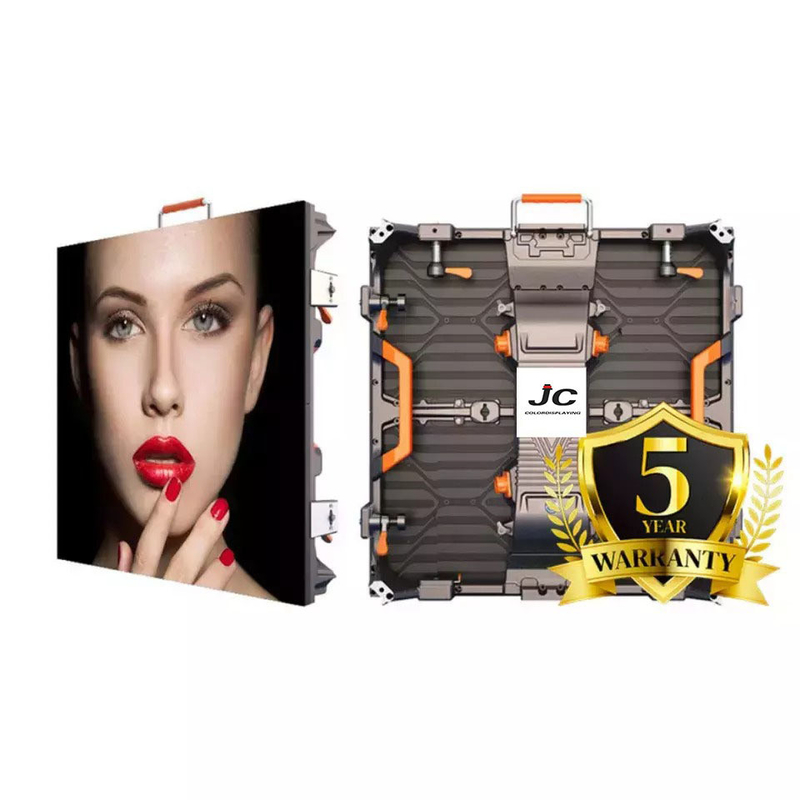

JC-P2.5 LED Display
P2.5mm indoor fixed LED screen is easy to operate and has powerful content management functions. In addition, various mature overseas projects have improved the overall performance of our P2.5 LED display, and more and more customers choose us as a long-term supplier and supplier of P2.5 indoor LED signs.
Offline Message
Small pixel P2.5mm indoor LED display is very popular now. Currently indoor fixed P2.5 LED display is the most common LED display with pixel pitch in the indoor fixed display market. Specifically designed for HD and high-contrast use where viewers display more vivid pictures and videos. If indoor applications require HD video standards, the P2.5 fixed LED display is the first choice. It is widely used in conference rooms, monitoring rooms, control rooms and other places that require high contrast and close-up viewing.
| JCHD | JC-P2.5 LED Display | |||||
|---|---|---|---|---|---|---|
| Pixel pitch(mm) | 2.5 | |||||
| Pixel Density(dot/m2) | 1600000 | |||||
| LED Type | SMD2121 | |||||
| Module Size(W x H )mm | 320 x 160 | |||||
| Module resolution(W x H) | 640 x 480 | |||||
| Module Weight(Kg) | 1.3 | |||||
| Power Consumption per Module(w) | 50 | |||||
| Diver Mode(Scan) | 1/32 | |||||
| Brightness(cd/m2) | ≥800 | |||||
| Grey Scale(bits) | 16 | |||||
| Refresh Rate(Hz) | ≥3,840 | |||||
| Cabinet Size(W x H x D)mm | 640 x 480 x 80 | |||||
| Cabinet Weight(Kg/Cabinet) | 7.8 | |||||
| Max Power Consumption(W/m2) | 605 | |||||
| Average Power Consumption(W/m2) | 250 | |||||
| View Angle(H°/V°) | 160°/160° | |||||
| Mini View Distance(m) | 2.5 | |||||
| Operating Use Temperature(℃) | -10℃~40℃ | |||||
| Storage Use Temperature(℃) | -20℃~50℃ | |||||
| Input Voltage(V) | 100~240V | |||||
| Input Power Frequency(Hz) | 50Hz~60Hz | |||||
| Failure Rate | ＜1/100,1000 | |||||
| Signal Input Format | SDI, RGBHV,YUV,YC,Composite,HDMI,DVI,SD/HD-SDI etc. | |||||
| Life Time(hrs) | 100000 | |||||
| IP Level(front/rear) | IP31/IP31 | |||||
